MEP::Drawable Class Reference

MEP::Drawable provides a basic implementation of an object with the ability of display it on a screen. More...

#include <Drawable.h>

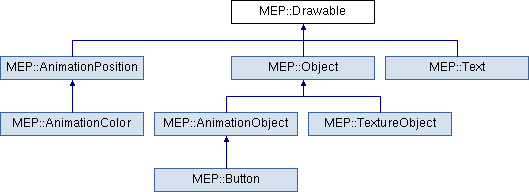

Inheritance diagram for MEP::Drawable:

Public Member Functions
void	_link (std::shared_ptr< bool > _li)
std::shared_ptr< bool >	_linkAddr ()
const std::shared_ptr< bool >	_linkAddr () const
bool	_isLinked () const
U_int32	getDrawTag () const
void	setDrawTag (const U_int32 tag)
bool	addDrawTag (const U_int32 tag)
bool	removeDrawTag (const U_int32 tag)
virtual void	onResize ()
	Drawable ()=default
virtual bool	draw (sf::RenderWindow &)
virtual void	update (sf::Time &)
virtual void	entryUpdate (sf::Time &currentTime, bool low=false)
virtual void	exitUpdate (sf::Time &currentTime, bool low=false)
virtual bool	isActive () const
virtual void	debugOutput (std::ostream &out) const
virtual	~Drawable ()

Protected Member Functions
void	notify ()
void	drawTagDebug (std::ostream &out) const

Friends
std::ostream &	operator<< (std::ostream &out, const Drawable &x)

Detailed Description

MEP::Drawable provides a basic implementation of an object with the ability of display it on a screen.

Constructor & Destructor Documentation

Drawable()

MEP::Drawable::Drawable ( )

default

Default contructor.

~Drawable()

virtual MEP::Drawable::~Drawable ( )

inlinevirtual

Member Function Documentation

_isLinked()

bool MEP::Drawable::_isLinked ( ) const

inline

Outputs the information about the activity of the link. Boolean value output true when resource is active.

_link()

void MEP::Drawable::_link ( std::shared_ptr< bool >  _li )

inline

Links the notification link. Boolean value output true when resource is active.

_linkAddr() [1/2]

std::shared_ptr<bool> MEP::Drawable::_linkAddr ( )

inline

Outputs the notification link. Boolean value output true when resource is active.

_linkAddr() [2/2]

const std::shared_ptr<bool> MEP::Drawable::_linkAddr ( ) const

inline

Outputs the notification link. Boolean value output true when resource is active.

addDrawTag()

bool MEP::Drawable::addDrawTag ( const U_int32  tag )

inline

Adds the draw tag of a MEP::Drawable. Use MEP::DrawTag here.

Parameters

[in]

MEP::Drawable::DrawTag.

Returns

: True - draw tag was added. False - draw tag is already added.

debugOutput()

virtual void MEP::Drawable::debugOutput ( std::ostream &  out ) const

inlinevirtual

Debug output of the class.

Reimplemented in MEP::TextureObject, MEP::Text, MEP::Object, MEP::AnimationPosition, MEP::AnimationObject, and MEP::AnimationColor.

draw()

virtual bool MEP::Drawable::draw ( sf::RenderWindow &  )

inlinevirtual

Default virtual draw function.

Parameters

[in]

window

: Reference to a window.

Returns

True if the drawing was successful, or false if there is something wrong with an object and it must be redrawn.

Reimplemented in MEP::TextureObject, MEP::Text, MEP::Object, MEP::AnimationObject, and MEP::AnimationPosition.

drawTagDebug()

void MEP::Drawable::drawTagDebug ( std::ostream &  out ) const

inlineprotected

DrawTag output

entryUpdate()

virtual void MEP::Drawable::entryUpdate ( sf::Time &  currentTime, bool  low = false  )

inlinevirtual

Default virtual entry update function.

Parameters

[in]

currentTime

: Current global time.

Reimplemented in MEP::Object, MEP::AnimationPosition, and MEP::AnimationObject.

exitUpdate()

virtual void MEP::Drawable::exitUpdate ( sf::Time &  currentTime, bool  low = false  )

inlinevirtual

Default virtual exit update function.

Parameters

[in]

currentTime

: Current global time.

Reimplemented in MEP::Object, MEP::AnimationPosition, and MEP::AnimationObject.

getDrawTag()

U_int32 MEP::Drawable::getDrawTag ( ) const

inline

Outputs draw tag of a MEP::Drawable Use MEP::DrawTag here.

Returns

: MEP::Drawable::DrawTag.

isActive()

virtual bool MEP::Drawable::isActive ( ) const

inlinevirtual

Default virtual activation status method.

Parameters

[in]

currentTime

: Current global time.

Reimplemented in MEP::TextureObject, MEP::AnimationPosition, MEP::AnimationObject, and MEP::Object.

notify()

void MEP::Drawable::notify ( )

inlineprotected

Notify the link.

onResize()

virtual void MEP::Drawable::onResize ( )

inlinevirtual

Instructions on what to do when window is being resized.

Reimplemented in MEP::TextureObject, MEP::Text, and MEP::AnimationObject.

removeDrawTag()

bool MEP::Drawable::removeDrawTag ( const U_int32  tag )

inline

Removes the draw tag of a MEP::Drawable. Use MEP::DrawTag here.

Parameters

[in]

MEP::Drawable::DrawTag.

Returns

: True - draw tag was deleted. False - draw tag was not set.

setDrawTag()

void MEP::Drawable::setDrawTag ( const U_int32  tag )

inline

Sets the draw tag of a MEP::Drawable. Use MEP::DrawTag here.

Parameters

[in]

MEP::Drawable::DrawTag.

update()

virtual void MEP::Drawable::update ( sf::Time &  )

inlinevirtual

Default virtual update function.

Parameters

[in]

currentTime

: Current global time.

Reimplemented in MEP::Button, MEP::AnimationObject, MEP::AnimationColor, MEP::AnimationPosition, MEP::TextureObject, MEP::Text, and MEP::Object.

Friends And Related Function Documentation

operator<<

std::ostream& operator<< ( std::ostream &  out, const Drawable &  x  )

friend

Overrdie of the << operator for diagnostic purposes.
