MEP::AnimationPosition provides a basic implementation of a modification of the position. More...

#include <AnimationPosition.h>

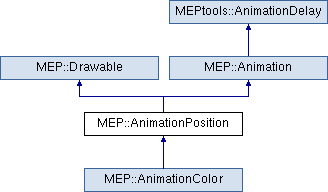

Inheritance diagram for MEP::AnimationPosition:

Public Member Functions
	AnimationPosition ()=default

	AnimationPosition (const AnimationPosition &x)

	AnimationPosition (const double entry, const double exit, sf::Time length, const float frameRate=120, const double begin=0, const double end=100, std::function< double(double x)> function=[](double x) ->double{ return x;})

virtual void	run (const Direction direc, sf::Time currentTime=sf::Time::Zero)

const double &	getFixedVariable () const

unsigned int	getFixedUintVariable () const

const double &	getEntry () const

const double &	getExit () const

bool	draw (sf::RenderWindow &) override

virtual void	update (sf::Time &currentTime)

void	entryUpdate (sf::Time &currentTime, bool low=false) override

void	exitUpdate (sf::Time &currentTime, bool low=false) override

bool	isActive () const override

bool	reset () override

virtual sf::Color	getFrameAsColor () const

void	delayOutput (std::ostream &out) const

virtual void	debugOutput (std::ostream &out) const

virtual	~AnimationPosition ()

Public Member Functions inherited from MEP::Drawable
void	_link (std::shared_ptr< bool > _li)

std::shared_ptr< bool >	_linkAddr ()

const std::shared_ptr< bool >	_linkAddr () const

bool	_isLinked () const

U_int32	getDrawTag () const

void	setDrawTag (const U_int32 tag)

bool	addDrawTag (const U_int32 tag)

bool	removeDrawTag (const U_int32 tag)

virtual void	onResize ()

	Drawable ()=default

virtual	~Drawable ()

Public Member Functions inherited from MEP::Animation
	Animation ()=default

	Animation (const AnimationInit initType, const float frameRate)

	Animation (const AnimationInit initType, const sf::Time towait)

	Animation (const Animation &x)

void	changeStatus ()

bool	getStatus () const

void	changeTag (MEP::U_int32 tag)

sf::Time	getToWait () const

AnimationInit	getInit () const

const Direction &	getDirection () const

void	setDirection (MEP::Direction dir)

Public Member Functions inherited from MEPtools::AnimationDelay
void	setDelay (const sf::Time &delay, bool permaDelay=false)

void	setEntryDelay (const sf::Time &delay)

void	setExitDelay (const sf::Time &delay)

void	setLowEntryDelay (const sf::Time &delay)

void	setLowExitDelay (const sf::Time &delay)

void	setGeneralDelay (const sf::Time &delay, bool permaDelay=false)

void	resetDelay ()

Protected Member Functions
void	init ()

void	updatePositionAnimation (sf::Time &currentTime)

Protected Member Functions inherited from MEP::Drawable
void	notify ()

void	drawTagDebug (std::ostream &out) const

Protected Member Functions inherited from MEP::Animation
void	animationDebug (std::ostream &out) const

Protected Member Functions inherited from MEPtools::AnimationDelay
const sf::Time &	delay () const

bool	updateDelay (const sf::Time &currentTime)

void	newCycle ()

void	changeState (State newState)

Protected Attributes
std::function< double(double x)>	m_function

unsigned int	nofFrames

std::list< double >	frames

std::list< double >::iterator	currentFrame

unsigned int	current_frame = 0

const double	m_begin = 0

const double	m_end = 0

double	m_entry = 0

double	m_exit = 0

Protected Attributes inherited from MEP::Animation
MEP::U_int32	m_tag = AdditionalTag::AdditionalTagDisabled

AnimationInit	isInit = AnimationInit::NotInit

sf::Time	updateTime = sf::Time::Zero

sf::Time	toWait = sf::Time::Zero

bool	isRunning = false

Direction	direction = Direction::Backwards

Protected Attributes inherited from MEPtools::AnimationDelay
State	state = State::Base

Friends
std::ostream &	operator<< (std::ostream &out, const AnimationPosition &x)

Additional Inherited Members
Public Types inherited from MEP::Animation
enum	AnimationInit { AnimationInit::NotInit = 0, AnimationInit::ObjectAnimation = 1, AnimationInit::PositionAnimation = 2 }

Protected Types inherited from MEPtools::AnimationDelay
enum	State { State::Entry, State::Exit, State::Base, State::LowExit, State::LowEntry }

Detailed Description

MEP::AnimationPosition provides a basic implementation of a modification of the position.

The idea here is simple. We take a function f. Then min(<f(begin), ..., f(end)>) where min is a minimal value. Becomes our entry position. And max(<f(begin), ..., f(end)>) where max is a maximal value. Becomes our exit position. Please keep in mind that f(begin) and minimal value are 2 seperate things, but of course f(begin) can be equal to minimal value. After all of that we generate points according to the given framerate and animation lenght.

Constructor & Destructor Documentation

◆ AnimationPosition() [1/3]

MEP::AnimationPosition::AnimationPosition ( )

default

◆ AnimationPosition() [2/3]

MEP::AnimationPosition::AnimationPosition ( const AnimationPosition & x )

inline

Vopy constructor of an animation.

Parameters

[in] x : MEP::AnimationPosition object

◆ AnimationPosition() [3/3]

MEP::AnimationPosition::AnimationPosition	(	const double	entry,
		const double	exit,
		sf::Time	length,
		const float	frameRate = `120`,
		const double	begin = `0`,
		const double	end = `100`,
		std::function< double(double x)>	function = `[](double x)->double{ return x; }`
	)

inline

Contructor of an animation. It is taking a part of a from f(begin) to f(end) then calculation the position accoring to the formula. Fmax(F(begin), F(end)) = exit, and Fmin(F(begin), F(end) = min.

Parameters

[in]	begin	: Begining point on a graph,
[in]	end	: End point of a graph.
[in]	length	: Animation lenght in ms.
[in]	frameRate	: Frame rate of an animation.
[in]	entry	: Entry position of an Object (before the animation)
[in]	exit	: Exit position of an Object (after the animation)
[in]	fun	: Function graph. Method with the return type double.

◆ ~AnimationPosition()

virtual MEP::AnimationPosition::~AnimationPosition ( )

inlinevirtual

Member Function Documentation

◆ debugOutput()

virtual void MEP::AnimationPosition::debugOutput ( std::ostream & out ) const

inlinevirtual

Debug output of the class.

Reimplemented from MEP::Drawable.

Reimplemented in MEP::AnimationColor.

◆ delayOutput()

void MEP::AnimationPosition::delayOutput ( std::ostream & out ) const

inline

◆ draw()

bool MEP::AnimationPosition::draw ( sf::RenderWindow & )

inlineoverridevirtual

Override of a MEP::Drawable draw.

Reimplemented from MEP::Drawable.

◆ entryUpdate()

void MEP::AnimationPosition::entryUpdate	(	sf::Time &	currentTime,
		bool	low = `false`
	)

inlineoverridevirtual

Override of a MEP::Drawable entryUpdate.

Reimplemented from MEP::Drawable.

◆ exitUpdate()

void MEP::AnimationPosition::exitUpdate	(	sf::Time &	currentTime,
		bool	low = `false`
	)

inlineoverridevirtual

Override of a MEP::Drawable exitUpate.

Reimplemented from MEP::Drawable.

◆ getEntry()

const double& MEP::AnimationPosition::getEntry ( ) const

inline

Outputs the entry position of an animation.

Returns: Entry position.

◆ getExit()

const double& MEP::AnimationPosition::getExit ( ) const

inline

Outputs the exit position of an animation.

Returns: Exit position.

◆ getFixedUintVariable()

unsigned int MEP::AnimationPosition::getFixedUintVariable ( ) const

inline

Outputs the current position of an animation.

Returns: Current position as unsigned int.

◆ getFixedVariable()

const double& MEP::AnimationPosition::getFixedVariable ( ) const

inline

Outputs the current position of an animation.

Returns: Current position.

◆ getFrameAsColor()

virtual sf::Color MEP::AnimationPosition::getFrameAsColor ( ) const

inlinevirtual

Outputs the current frame as a Color Warning For color animation it is recommended to use MEP::AnimationColor

Returns: : sf::Color

Reimplemented in MEP::AnimationColor.

◆ init()

void MEP::AnimationPosition::init ( )

inlineprotected

◆ isActive()

bool MEP::AnimationPosition::isActive ( ) const

inlineoverridevirtual

Outputs the activation status of an animation.

Returns: True - active, False - unactive

Reimplemented from MEP::Drawable.

◆ reset()

bool MEP::AnimationPosition::reset ( )

inlineoverridevirtual

Resets the parameters of the animation if the animation is not active. Reset means changing it's current frame to begin or end depending of the direction. If direction is forward changes to begin otherwise to end.

Reimplemented from MEP::Animation.

◆ run()

virtual void MEP::AnimationPosition::run	(	const Direction	direc,
		sf::Time	currentTime = `sf::Time::Zero`
	)

inlinevirtual

Sets the running tag to true and changes the direction of a movement, furthermore, it is capable of setting a current time.

Parameters

[in]	direc	: MEP::Animation::Direction.
[in]	currentTime	: sf::Time = sf::Time::Zero.

Reimplemented from MEP::Animation.

◆ update()

void MEP::AnimationPosition::update ( sf::Time & currentTime )

inlinevirtual

Override of a MEP::Drawable update.

Reimplemented from MEP::Drawable.

Reimplemented in MEP::AnimationColor.

◆ updatePositionAnimation()

void MEP::AnimationPosition::updatePositionAnimation ( sf::Time & currentTime )

inlineprotected

Core updates for position animation.

Core updates for position animation. This method is needed in order to avoid CTRL-C/V.

Friends And Related Function Documentation

◆ operator<<

std::ostream& operator<<	(	std::ostream &	out,
		const AnimationPosition &	x
	)

friend

Overrdie of the << operator for diagnostic purposes.

Member Data Documentation

◆ current_frame

unsigned int MEP::AnimationPosition::current_frame = 0

protected

◆ currentFrame

std::list<double>::iterator MEP::AnimationPosition::currentFrame

protected

◆ frames

std::list<double> MEP::AnimationPosition::frames

protected

◆ m_begin

const double MEP::AnimationPosition::m_begin = 0

protected

◆ m_end

const double MEP::AnimationPosition::m_end = 0

protected

◆ m_entry

double MEP::AnimationPosition::m_entry = 0

protected

◆ m_exit

double MEP::AnimationPosition::m_exit = 0

protected

◆ m_function

std::function<double(double x)> MEP::AnimationPosition::m_function

protected

◆ nofFrames

unsigned int MEP::AnimationPosition::nofFrames

protected
