MEP::Button provides a basic implementation of an object with the ability of display it on a screen. More...

#include <Button.h>

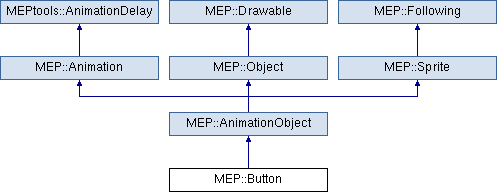

Inheritance diagram for MEP::Button:

Public Member Functions
	Button (const Object &x, unsigned int active_breakpoint, sf::Vector2f pos={ 0, 0 }, sf::Vector2f scale={ 1, 1 })

	Button (const float frameRate, const Object &x, unsigned int active_breakpoint, sf::Vector2f pos={ 0, 0 }, sf::Vector2f scale={ 1, 1 })

void	update (sf::Time &currentTime) override

bool	isTansparent (unsigned int x, unsigned int y) override

void	changeStatus (const ButtonStatus &status)

const ButtonStatus &	getStatus () const

bool	handleEvent (sf::Event &event, sf::Vector2i &pos)

bool	mousePress (sf::Vector2i &pos)

bool	mouseRelease (sf::Vector2i &pos)

bool	mouseActivity (const sf::Vector2i &pos)

void	forceRelease ()

bool	forceReleased ()

void	forcePress ()

bool	forcePressed ()

void	block ()

void	release ()

bool	isBlocked () const

Public Member Functions inherited from MEP::AnimationObject
	AnimationObject (const float frameRate, const Object &x, sf::Vector2f pos={ 0.f, 0.f }, sf::Vector2f scale={ 1.f, 1.f })

void	onResize () override

virtual const sf::Vector2u &	getSize () const

void	setScale (const sf::Vector2f scale) override

void	setScale (const Following &x) override

void	runForward (sf::Time &currentTime)

void	runBackward (sf::Time &currentTime)

bool	draw (sf::RenderWindow &window) override

void	entryUpdate (sf::Time &currentTime, bool low=false) override

void	exitUpdate (sf::Time &currentTime, bool low=false) override

bool	isActive () const override

const AnimationObject &	getAnimationObject ()

virtual void	debugOutput (std::ostream &out) const

virtual	~AnimationObject ()=default

Public Member Functions inherited from MEP::Animation
	Animation ()=default

	Animation (const AnimationInit initType, const float frameRate)

	Animation (const AnimationInit initType, const sf::Time towait)

	Animation (const Animation &x)

virtual void	run (const Direction direc, sf::Time currentTime=sf::Time::Zero)

void	changeStatus ()

bool	getStatus () const

void	changeTag (MEP::U_int32 tag)

sf::Time	getToWait () const

AnimationInit	getInit () const

const Direction &	getDirection () const

void	setDirection (MEP::Direction dir)

virtual bool	reset ()

Public Member Functions inherited from MEPtools::AnimationDelay
void	setDelay (const sf::Time &delay, bool permaDelay=false)

void	setEntryDelay (const sf::Time &delay)

void	setExitDelay (const sf::Time &delay)

void	setLowEntryDelay (const sf::Time &delay)

void	setLowExitDelay (const sf::Time &delay)

void	setGeneralDelay (const sf::Time &delay, bool permaDelay=false)

void	resetDelay ()

Public Member Functions inherited from MEP::Object
	Object ()=delete

	Object (const Object &x)

	Object (const U_int32 ID, const std::string &path, const std::string &filename, bool transparencyM=false)

	Object (const U_int32 ID, const std::string &path, const std::string &filename, unsigned int frames, bool transparencyM=false)

	Object (const U_int32 ID, std::list< sf::Image > &images, const std::string &filename, bool transparencyM=false)

unsigned long	getNufTextures () const

bool	draw (sf::RenderWindow &window) override

void	update (sf::Time &) override

void	entryUpdate (sf::Time &currentTime, bool low=false) override

void	exitUpdate (sf::Time &currentTime, bool low=false) override

Object *	getObjectPoint ()

Object &	getObjectRef ()

const U_int32 &	getID () const

const std::string &	getName () const

bool	isActive () const

const ObjectType &	getType () const

unsigned int	nufC () const

bool	operator== (const std::string &x) const

bool	operator== (const Object &x) const

	~Object () override

Public Member Functions inherited from MEP::Drawable
void	_link (std::shared_ptr< bool > _li)

std::shared_ptr< bool >	_linkAddr ()

const std::shared_ptr< bool >	_linkAddr () const

bool	_isLinked () const

U_int32	getDrawTag () const

void	setDrawTag (const U_int32 tag)

bool	addDrawTag (const U_int32 tag)

bool	removeDrawTag (const U_int32 tag)

	Drawable ()=default

virtual	~Drawable ()

Public Member Functions inherited from MEP::Sprite
	Sprite (const FollowType &followType, sf::Vector2f pos={ 0.f, 0.f }, sf::Vector2f scale={ 1.f, 1.f })

	Sprite (sf::Vector2f pos={ 0.f, 0.f }, sf::Vector2f scale={ 1.f, 1.f })

Sprite &	operator<< (const Sprite &x)

sf::Sprite &	getSprite ()

void	updateSprite (sf::Texture &texture)

virtual void	updateSprite ()

void	setPosition (const sf::Vector2f pos) override

void	setPosition (const Following &x) override

void	setColor (const sf::Color &color) override

void	setRect (const sf::IntRect &rect)

void	addMethodRect (std::function< sf::IntRect()> method)

void	updateRect ()

const sf::IntRect &	getRect () const

const sf::Color &	getColor () const override

Public Member Functions inherited from MEP::Following
	Following (const FollowType &followType, sf::Vector2f pos={ 0.f, 0.f }, sf::Vector2f posFixed={ 0.f, 0.f }, sf::Vector2f scale={ 1.f, 1.f }, sf::Vector2f scaleFixed={ 1.f, 1.f })

	Following (sf::Vector2f pos={ 0.f, 0.f }, sf::Vector2f posFixed={ 0.f, 0.f }, sf::Vector2f scale={ 1.f, 1.f }, sf::Vector2f scaleFixed={ 1.f, 1.f })

	Following (const Following &x)

void	updatePosition ()

void	addMethodPos (std::function< sf::Vector2f()> method)

void	updateScale ()

void	addMethodScale (std::function< sf::Vector2f()> method)

Following &	operator<< (const Following &x)

void	setFollow (const AnimationPosition &base, const FollowType type, MEP::U_int32 group=-1)

void	setFollow (const AnimationColor &base, MEP::U_int32 toFollow=MEP::ColorChannel::ALL, MEP::U_int32 group=-1)

void	muteFollowGroup (MEP::U_int32 group)

void	unMuteFollowGroup (MEP::U_int32 group)

void	fullMuteFollow ()

void	fullUnMuteFollow ()

virtual void	movePosition (const sf::Vector2f pos)

sf::Vector2f	getPosition () const

sf::Vector2f	getScale () const

sf::Vector2f	getOriginPosition () const

sf::Vector2f	getOriginScale () const

bool	isFollowerActive () const

void	followingDebug (std::ostream &out, const char *skipLines="") const

void	clearFollow ()

Additional Inherited Members
Public Types inherited from MEP::Animation
enum	AnimationInit { AnimationInit::NotInit = 0, AnimationInit::ObjectAnimation = 1, AnimationInit::PositionAnimation = 2 }

Public Types inherited from MEP::Object
enum	ObjectType { ObjectType::NotInit, ObjectType::Single, ObjectType::Multi }

Public Types inherited from MEP::Following
enum	FollowType { FollowType::NotInit = 0, FollowType::Objects = 1, FollowType::X_Scale = 2, FollowType::Y_Scale = 3, FollowType::X_Pos = 4, FollowType::Y_Pos = 5, FollowType::Color = 6 }

Protected Types inherited from MEPtools::AnimationDelay
enum	State { State::Entry, State::Exit, State::Base, State::LowExit, State::LowEntry }

Protected Member Functions inherited from MEP::AnimationObject
void	init ()

bool	correctObject (const Object &x)

void	updateSize ()

Protected Member Functions inherited from MEP::Animation
void	animationDebug (std::ostream &out) const

Protected Member Functions inherited from MEPtools::AnimationDelay
const sf::Time &	delay () const

bool	updateDelay (const sf::Time &currentTime)

void	newCycle ()

void	changeState (State newState)

Protected Member Functions inherited from MEP::Object
void	deleteObject ()

Protected Member Functions inherited from MEP::Drawable
void	notify ()

void	drawTagDebug (std::ostream &out) const

Protected Attributes inherited from MEP::AnimationObject
std::list< sf::Texture * >::iterator	currentFrame

unsigned int	index_currentFrame = 0

const AnimationObject *	toFollowOBJ = nullptr

sf::Vector2u	fixSize

Protected Attributes inherited from MEP::Animation
MEP::U_int32	m_tag = AdditionalTag::AdditionalTagDisabled

AnimationInit	isInit = AnimationInit::NotInit

sf::Time	updateTime = sf::Time::Zero

sf::Time	toWait = sf::Time::Zero

bool	isRunning = false

Direction	direction = Direction::Backwards

Protected Attributes inherited from MEPtools::AnimationDelay
State	state = State::Base

Protected Attributes inherited from MEP::Object
bool	transparency = false

bool **	table = nullptr

sf::Vector2u	m_size = {0, 0}

std::list< sf::Texture * > *	texture

ObjectType	m_type = Object::ObjectType::NotInit

Protected Attributes inherited from MEP::Sprite
sf::Sprite	currentSprite

Protected Attributes inherited from MEP::Following
std::function< sf::Vector2f()>	calc_position = [this]()->sf::Vector2f { return m_pos; }

std::function< sf::Vector2f()>	calc_scale = [this]()->sf::Vector2f { return m_scale; }

MEPtools::GroupManager< Follow, std::unique_ptr< Follow >, std::list< std::unique_ptr< Follow > > >	followingListv2

sf::Vector2f	m_pos = {0.f, 0.f}

sf::Vector2f	m_posMove = { 0.f, 0.f }

sf::Vector2f	m_posFixed = { 0.f, 0.f }

sf::Vector2f	m_scale = { 1.f, 1.f }

sf::Vector2f	m_scaleFixed = { 1.f, 1.f }

sf::Color	m_color

sf::Color	m_colorFixed

Detailed Description

MEP::Button provides a basic implementation of an object with the ability of display it on a screen.

Constructor & Destructor Documentation

◆ Button() [1/2]

MEP::Button::Button	(	const Object &	x,
		unsigned int	active_breakpoint,
		sf::Vector2f	pos = `{ 0, 0 }`,
		sf::Vector2f	scale = `{ 1, 1 }`
	)

inline

Constructor of a Button

Parameters

[in]	x	: MEP::Object
[in]	active_breakpoint	: State in which button is fully activeated (mouse is pointing).
[in]	pos	: position of a button.
[in]	scale	: scale of a button

◆ Button() [2/2]

MEP::Button::Button	(	const float	frameRate,
		const Object &	x,
		unsigned int	active_breakpoint,
		sf::Vector2f	pos = `{ 0, 0 }`,
		sf::Vector2f	scale = `{ 1, 1 }`
	)

inline

Constructor of a Button

Parameters

[in]	x	: frame rate of an animation.
[in]	x	: MEP::Object
[in]	active_breakpoint	: State in which button is fully activeated (mouse is pointing).
[in]	pos	: position of a button.
[in]	scale	: scale of a button

Member Function Documentation

◆ block()

void MEP::Button::block ( )

inline

Block any activity in the button.

◆ changeStatus()

void MEP::Button::changeStatus ( const ButtonStatus & status )

inline

Changes the status of a button.

Parameters

[in] status : A MEP::Button::ButtonStatus object

◆ forcePress()

void MEP::Button::forcePress ( )

inline

Forces to press the button. Not ignoring the animation.

◆ forcePressed()

bool MEP::Button::forcePressed ( )

inline

Forces the button to be pressed. Ignores the animation.

Returns: : True - Button was pressed, False - animation is active.

◆ forceRelease()

void MEP::Button::forceRelease ( )

inline

Forces to releases the button.

◆ forceReleased()

bool MEP::Button::forceReleased ( )

inline

Forces the button to be released. Ignores the animation.

Returns: : True - Button was released, False - animation is active.

◆ getStatus()

const ButtonStatus& MEP::Button::getStatus ( ) const

inline

Outputs current status of a button.

Returns: Current status

◆ handleEvent()

bool MEP::Button::handleEvent	(	sf::Event &	event,
		sf::Vector2i &	pos
	)

inline

Automatically handles the events.
This method is not recommended because of the complexity.
(When executed automatically checks all of the events. Mouse activity, movement etc.)

◆ isBlocked()

bool MEP::Button::isBlocked ( ) const

inline

Checks the activity of the button.

◆ isTansparent()

bool MEP::Button::isTansparent	(	unsigned int	x,
		unsigned int	y
	)

inlineoverridevirtual

Checks if a given position is Transparent. MEP::Objects of a button needs to have transparency initialized.

Returns: true - position is transparent, false - there is a pixel witout alpha channel > 200

Reimplemented from MEP::AnimationObject.

◆ mouseActivity()

bool MEP::Button::mouseActivity ( const sf::Vector2i & pos )

inline

Inform the button that the statue of .

Returns: : True - there was an activity on a Button, False - otherwise.

◆ mousePress()

bool MEP::Button::mousePress ( sf::Vector2i & pos )

inline

Delivers an information that there is a possible press event tied with the button. True - if button is pressed, False - otherwise.

◆ mouseRelease()

bool MEP::Button::mouseRelease ( sf::Vector2i & pos )

inline

Delivers an information that there is a possible release event tied with the button. True - if button is released, False - otherwise.

◆ release()

void MEP::Button::release ( )

inline

Unlocks activity among the button.

◆ update()

void MEP::Button::update ( sf::Time & currentTime )

inlineoverridevirtual

Override of a MEP::Drawable update.

Reimplemented from MEP::AnimationObject.

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Button() [1/2]

◆ Button() [2/2]

Member Function Documentation

◆ block()

◆ changeStatus()

◆ forcePress()

◆ forcePressed()

◆ forceRelease()

◆ forceReleased()

◆ getStatus()

◆ handleEvent()

◆ isBlocked()

◆ isTansparent()

◆ mouseActivity()

◆ mousePress()

◆ mouseRelease()

◆ release()

◆ update()
