MEP::AnimationObject is a sprite with the ability to dislay an animation. More...

#include <AnimationObject.h>

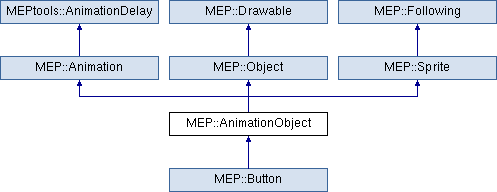

Inheritance diagram for MEP::AnimationObject:

Public Member Functions
	AnimationObject (const float frameRate, const Object &x, sf::Vector2f pos={ 0.f, 0.f }, sf::Vector2f scale={ 1.f, 1.f })

void	onResize () override

virtual const sf::Vector2u &	getSize () const

void	setScale (const sf::Vector2f scale) override

void	setScale (const Following &x) override

void	runForward (sf::Time &currentTime)

void	runBackward (sf::Time &currentTime)

bool	draw (sf::RenderWindow &window) override

void	update (sf::Time &currentTime) override

void	entryUpdate (sf::Time &currentTime, bool low=false) override

void	exitUpdate (sf::Time &currentTime, bool low=false) override

bool	isActive () const override

bool	isTansparent (unsigned int x, unsigned int y) override

const AnimationObject &	getAnimationObject ()

virtual void	debugOutput (std::ostream &out) const

virtual	~AnimationObject ()=default

Public Member Functions inherited from MEP::Animation
	Animation ()=default

	Animation (const AnimationInit initType, const float frameRate)

	Animation (const AnimationInit initType, const sf::Time towait)

	Animation (const Animation &x)

virtual void	run (const Direction direc, sf::Time currentTime=sf::Time::Zero)

void	changeStatus ()

bool	getStatus () const

void	changeTag (MEP::U_int32 tag)

sf::Time	getToWait () const

AnimationInit	getInit () const

const Direction &	getDirection () const

void	setDirection (MEP::Direction dir)

virtual bool	reset ()

Public Member Functions inherited from MEPtools::AnimationDelay
void	setDelay (const sf::Time &delay, bool permaDelay=false)

void	setEntryDelay (const sf::Time &delay)

void	setExitDelay (const sf::Time &delay)

void	setLowEntryDelay (const sf::Time &delay)

void	setLowExitDelay (const sf::Time &delay)

void	setGeneralDelay (const sf::Time &delay, bool permaDelay=false)

void	resetDelay ()

Public Member Functions inherited from MEP::Object
	Object ()=delete

	Object (const Object &x)

	Object (const U_int32 ID, const std::string &path, const std::string &filename, bool transparencyM=false)

	Object (const U_int32 ID, const std::string &path, const std::string &filename, unsigned int frames, bool transparencyM=false)

	Object (const U_int32 ID, std::list< sf::Image > &images, const std::string &filename, bool transparencyM=false)

unsigned long	getNufTextures () const

bool	draw (sf::RenderWindow &window) override

void	update (sf::Time &) override

void	entryUpdate (sf::Time &currentTime, bool low=false) override

void	exitUpdate (sf::Time &currentTime, bool low=false) override

Object *	getObjectPoint ()

Object &	getObjectRef ()

const U_int32 &	getID () const

const std::string &	getName () const

bool	isActive () const

const ObjectType &	getType () const

unsigned int	nufC () const

bool	operator== (const std::string &x) const

bool	operator== (const Object &x) const

	~Object () override

Public Member Functions inherited from MEP::Drawable
void	_link (std::shared_ptr< bool > _li)

std::shared_ptr< bool >	_linkAddr ()

const std::shared_ptr< bool >	_linkAddr () const

bool	_isLinked () const

U_int32	getDrawTag () const

void	setDrawTag (const U_int32 tag)

bool	addDrawTag (const U_int32 tag)

bool	removeDrawTag (const U_int32 tag)

	Drawable ()=default

virtual	~Drawable ()

Public Member Functions inherited from MEP::Sprite
	Sprite (const FollowType &followType, sf::Vector2f pos={ 0.f, 0.f }, sf::Vector2f scale={ 1.f, 1.f })

	Sprite (sf::Vector2f pos={ 0.f, 0.f }, sf::Vector2f scale={ 1.f, 1.f })

Sprite &	operator<< (const Sprite &x)

sf::Sprite &	getSprite ()

void	updateSprite (sf::Texture &texture)

virtual void	updateSprite ()

void	setPosition (const sf::Vector2f pos) override

void	setPosition (const Following &x) override

void	setColor (const sf::Color &color) override

void	setRect (const sf::IntRect &rect)

void	addMethodRect (std::function< sf::IntRect()> method)

void	updateRect ()

const sf::IntRect &	getRect () const

const sf::Color &	getColor () const override

Public Member Functions inherited from MEP::Following
	Following (const FollowType &followType, sf::Vector2f pos={ 0.f, 0.f }, sf::Vector2f posFixed={ 0.f, 0.f }, sf::Vector2f scale={ 1.f, 1.f }, sf::Vector2f scaleFixed={ 1.f, 1.f })

	Following (sf::Vector2f pos={ 0.f, 0.f }, sf::Vector2f posFixed={ 0.f, 0.f }, sf::Vector2f scale={ 1.f, 1.f }, sf::Vector2f scaleFixed={ 1.f, 1.f })

	Following (const Following &x)

void	updatePosition ()

void	addMethodPos (std::function< sf::Vector2f()> method)

void	updateScale ()

void	addMethodScale (std::function< sf::Vector2f()> method)

Following &	operator<< (const Following &x)

void	setFollow (const AnimationPosition &base, const FollowType type, MEP::U_int32 group=-1)

void	setFollow (const AnimationColor &base, MEP::U_int32 toFollow=MEP::ColorChannel::ALL, MEP::U_int32 group=-1)

void	muteFollowGroup (MEP::U_int32 group)

void	unMuteFollowGroup (MEP::U_int32 group)

void	fullMuteFollow ()

void	fullUnMuteFollow ()

virtual void	movePosition (const sf::Vector2f pos)

sf::Vector2f	getPosition () const

sf::Vector2f	getScale () const

sf::Vector2f	getOriginPosition () const

sf::Vector2f	getOriginScale () const

bool	isFollowerActive () const

void	followingDebug (std::ostream &out, const char *skipLines="") const

void	clearFollow ()

Protected Member Functions
void	init ()

bool	correctObject (const Object &x)

void	updateSize ()

Protected Member Functions inherited from MEP::Animation
void	animationDebug (std::ostream &out) const

Protected Member Functions inherited from MEPtools::AnimationDelay
const sf::Time &	delay () const

bool	updateDelay (const sf::Time &currentTime)

void	newCycle ()

void	changeState (State newState)

Protected Member Functions inherited from MEP::Object
void	deleteObject ()

Protected Member Functions inherited from MEP::Drawable
void	notify ()

void	drawTagDebug (std::ostream &out) const

Protected Attributes
std::list< sf::Texture * >::iterator	currentFrame

unsigned int	index_currentFrame = 0

const AnimationObject *	toFollowOBJ = nullptr

sf::Vector2u	fixSize

Protected Attributes inherited from MEP::Animation
MEP::U_int32	m_tag = AdditionalTag::AdditionalTagDisabled

AnimationInit	isInit = AnimationInit::NotInit

sf::Time	updateTime = sf::Time::Zero

sf::Time	toWait = sf::Time::Zero

bool	isRunning = false

Direction	direction = Direction::Backwards

Protected Attributes inherited from MEPtools::AnimationDelay
State	state = State::Base

Protected Attributes inherited from MEP::Object
bool	transparency = false

bool **	table = nullptr

sf::Vector2u	m_size = {0, 0}

std::list< sf::Texture * > *	texture

ObjectType	m_type = Object::ObjectType::NotInit

Protected Attributes inherited from MEP::Sprite
sf::Sprite	currentSprite

Protected Attributes inherited from MEP::Following
std::function< sf::Vector2f()>	calc_position = [this]()->sf::Vector2f { return m_pos; }

std::function< sf::Vector2f()>	calc_scale = [this]()->sf::Vector2f { return m_scale; }

MEPtools::GroupManager< Follow, std::unique_ptr< Follow >, std::list< std::unique_ptr< Follow > > >	followingListv2

sf::Vector2f	m_pos = {0.f, 0.f}

sf::Vector2f	m_posMove = { 0.f, 0.f }

sf::Vector2f	m_posFixed = { 0.f, 0.f }

sf::Vector2f	m_scale = { 1.f, 1.f }

sf::Vector2f	m_scaleFixed = { 1.f, 1.f }

sf::Color	m_color

sf::Color	m_colorFixed

Friends
std::ostream &	operator<< (std::ostream &out, const AnimationObject &x)

Additional Inherited Members
Public Types inherited from MEP::Animation
enum	AnimationInit { AnimationInit::NotInit = 0, AnimationInit::ObjectAnimation = 1, AnimationInit::PositionAnimation = 2 }

Public Types inherited from MEP::Object
enum	ObjectType { ObjectType::NotInit, ObjectType::Single, ObjectType::Multi }

Public Types inherited from MEP::Following
enum	FollowType { FollowType::NotInit = 0, FollowType::Objects = 1, FollowType::X_Scale = 2, FollowType::Y_Scale = 3, FollowType::X_Pos = 4, FollowType::Y_Pos = 5, FollowType::Color = 6 }

Protected Types inherited from MEPtools::AnimationDelay
enum	State { State::Entry, State::Exit, State::Base, State::LowExit, State::LowEntry }

Detailed Description

MEP::AnimationObject is a sprite with the ability to dislay an animation.

Constructor & Destructor Documentation

◆ AnimationObject()

MEP::AnimationObject::AnimationObject	(	const float	frameRate,
		const Object &	x,
		sf::Vector2f	pos = `{ 0.f, 0.f }`,
		sf::Vector2f	scale = `{ 1.f, 1.f }`
	)

inline

Constructor of an animation.

Parameters

[in]	frameRate	: Frame rate of an animation.
[in]	x	: Object with the animation frames.
[in]	pos	: Position of an animation.
[in]	scale	: Scale of an animation.

◆ ~AnimationObject()

virtual MEP::AnimationObject::~AnimationObject ( )

virtualdefault

Member Function Documentation

◆ correctObject()

bool MEP::AnimationObject::correctObject ( const Object & x )

inlineprotected

◆ debugOutput()

virtual void MEP::AnimationObject::debugOutput ( std::ostream & out ) const

inlinevirtual

Debug output of the class.

Reimplemented from MEP::Object.

◆ draw()

bool MEP::AnimationObject::draw ( sf::RenderWindow & window )

inlineoverridevirtual

Override of a MEP::Drawable draw.

Reimplemented from MEP::Drawable.

◆ entryUpdate()

void MEP::AnimationObject::entryUpdate	(	sf::Time &	currentTime,
		bool	low = `false`
	)

inlineoverridevirtual

Override of a MEP::Drawable entryUpdate.

Reimplemented from MEP::Drawable.

◆ exitUpdate()

void MEP::AnimationObject::exitUpdate	(	sf::Time &	currentTime,
		bool	low = `false`
	)

inlineoverridevirtual

Override of a MEP::Drawable exitUpdate.

Reimplemented from MEP::Drawable.

◆ getAnimationObject()

const AnimationObject& MEP::AnimationObject::getAnimationObject ( )

inline

Outputs the animation object.

Returns: : MEP::AnimationObject.

◆ getSize()

virtual const sf::Vector2u& MEP::AnimationObject::getSize ( ) const

inlinevirtual

Outputs the size of a master MEP::Object

Returns: sf:Vector2u size.

Reimplemented from MEP::Object.

◆ init()

void MEP::AnimationObject::init ( )

inlineprotected

◆ isActive()

bool MEP::AnimationObject::isActive ( ) const

inlineoverridevirtual

Outputs the activation status of an animation.

Returns: True - active, False - unactive

Reimplemented from MEP::Drawable.

◆ isTansparent()

bool MEP::AnimationObject::isTansparent	(	unsigned int	x,
		unsigned int	y
	)

inlineoverridevirtual

Checks if a given position is Transparent. MEP::Objects of a button needs to have transparency initialized.

Returns: true - position is transparent, false - there is a pixel witout alpha channel > 200

Reimplemented from MEP::Object.

Reimplemented in MEP::Button.

◆ onResize()

void MEP::AnimationObject::onResize ( )

inlineoverridevirtual

On resize we want to update the position.

Reimplemented from MEP::Drawable.

◆ runBackward()

void MEP::AnimationObject::runBackward ( sf::Time & currentTime )

inline

Runs the animation in the backward direction.

Parameters

[in] currentTime : Current global time.

◆ runForward()

void MEP::AnimationObject::runForward ( sf::Time & currentTime )

inline

Runs the animation in the forward direction.

Parameters

[in] currentTime : Current global time.

◆ setScale() [1/2]

void MEP::AnimationObject::setScale ( const Following & x )

inlineoverridevirtual

Sets the scale.

Parameters

[in] pos : MEP::Following object.

Reimplemented from MEP::Sprite.

◆ setScale() [2/2]

void MEP::AnimationObject::setScale ( const sf::Vector2f scale )

inlineoverridevirtual

Sets the scale.

Parameters

[in] scale : Scale.

Reimplemented from MEP::Sprite.

◆ update()

void MEP::AnimationObject::update ( sf::Time & currentTime )

inlineoverridevirtual

Override of a MEP::Drawable update.

Reimplemented from MEP::Drawable.

Reimplemented in MEP::Button.

◆ updateSize()

void MEP::AnimationObject::updateSize ( )

inlineprotected

Friends And Related Function Documentation

◆ operator<<

std::ostream& operator<<	(	std::ostream &	out,
		const AnimationObject &	x
	)

friend

Overrdie of the << operator for diagnostic purposes.

Member Data Documentation

◆ currentFrame

std::list<sf::Texture*>::iterator MEP::AnimationObject::currentFrame

protected

◆ fixSize

sf::Vector2u MEP::AnimationObject::fixSize

protected

◆ index_currentFrame

unsigned int MEP::AnimationObject::index_currentFrame = 0

protected

◆ toFollowOBJ

const AnimationObject* MEP::AnimationObject::toFollowOBJ = nullptr

protected

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ AnimationObject()

◆ ~AnimationObject()

Member Function Documentation

◆ correctObject()

◆ debugOutput()

◆ draw()

◆ entryUpdate()

◆ exitUpdate()

◆ getAnimationObject()

◆ getSize()

◆ init()

◆ isActive()

◆ isTansparent()

◆ onResize()

◆ runBackward()

◆ runForward()

◆ setScale() [1/2]

◆ setScale() [2/2]

◆ update()

◆ updateSize()

Friends And Related Function Documentation

◆ operator<<

Member Data Documentation

◆ currentFrame

◆ fixSize

◆ index_currentFrame

◆ toFollowOBJ
